Manual
Warranty
Demonstratable
Training
Installation
Parts and accessories:
SPI 400W 1070nm Fiber Source
COHERENT FAP 100W 820nm
COMPACT HIGH-ENERGY PICOSECOND
Sirius
5W / Single shot to 1 MHz 1064 nm > 60 µJ
2W / Single shot to 1 MHz 532 nm > 32 µJ
Equipment location:
France
Additional information:

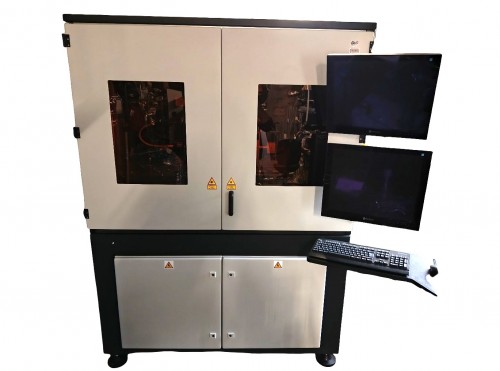

MICROMACHINING LASER SYSTEM
Overview / Micromachining laser for welding, cutting, drilling, engraving, and texturing / Ultrashort pulse laser / LASEA laser for R&D / Extremely robust system ideally suited for precision tasks
Applications / Complete cutting / Drilling / Welding / Assembly / Texturing / Surface treatment
Compatible Materials / Sapphire / Quartz / Ceramics / Silicone / Alloys and metals / Silicon / And more
Work Area & Positioning / XZ table with 500x200mm travel / 200x200mm work area / Vertical rotary axis / Z-axis supports optical systems / Internal axis resolution: 1µm
LASER SYSTEMS
400W Laser / Equipped with welding and cutting head / In-line camera for precise positioning / Through-the-lens manual positioning for welding and cutting / Multi-gas injection capability
100W FAP Laser / Directly connected to fiber optic cable / Fixed lens system
Picosecond Laser / Directed via mirror system and scanner head / Separate lens system for each wavelength: 532nm and 1064nm
INSPECTION & PRS / Microscopic inspection zoom system with software / Offset, zoom, and focus memory / Edge, line, and circle detection
FUME EXTRACTION / VOC 99.99% Fume Extraction System
EQUIPMENT SPECIFICATIONS / SPI 400W 1070nm Fiber Source / COHERENT FAP 100W 820nm / COMPACT HIGH-ENERGY PICOSECOND 5W (Single shot to 1 MHz, 1064 nm > 60 µJ) / 2W (Single shot to 1 MHz, 532 nm > 32 µJ) / XYT + Z Aerotech PRO165 Table + A3200 Controller / SMC Chiller / Fume Extractor / Power Process Software
SOFTWARE COMPATIBILITY / DWG, DXF, GDS2, STL, STEP / AutoCAD for Direct Editing / Windows 7 / Laser Calibration Tool
VIEWING & TRANSPORT / Machine can be viewed on-site or via video / Transportation is the responsibility of the customer
