Parts and accessories:
Laser Head, Power Supply, MRU Air Cleaner/Recirculating Unit, Air Cooled Chiller and all cables and hoses. Plus extra cords, hoses, GUI CD.
Equipment location:
Berryton, KS
Additional information:

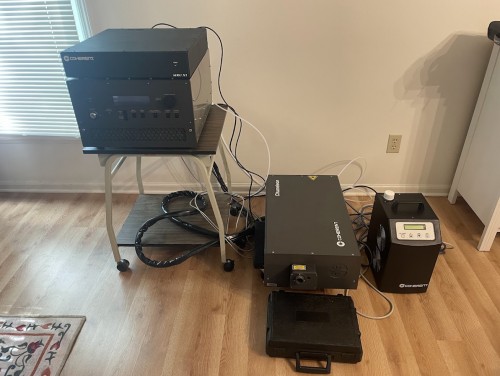

Coherent Chameleon Ultra tunable femtosecond laser system with MRU X1 recirculator and chiller. Serial #GDP 1094228.2831. 3,924 run hours.
Tested Output
750 nm: 3.36 W ChamPwr
800 nm: 2.48 W ChamPwr
900 nm: 2.03 W ChamPwr
Unit powers up, produces laser output, and tunes across the tested range. Factory specifications list a 690–1040 nm tuning range, 140 ±20 fs pulse width, and 80 MHz repetition rate.
Known issues: Display shows Fault 50 – humidity over 5%. MRU X1 runs but needs the desiccant/decanters replaced to dry efficiently. MENU UP button does not appear to activate; MENU DOWN works for cycling menus however. Key switch requires a slight shake/wiggle to activate.
